Replacing a 13x20x4 air filter should take five minutes, with nothing more in your hand than the filter itself and maybe a flashlight. After more than a decade of building these pleated filters in the United States, we've watched thousands of first-time installers wrap up the swap before their coffee gets cold. The trick is not strength or skill. It's knowing which way the airflow arrow points and what to check on the old filter before you toss it.
Here's the no-stress version of the job, plus a quick read on which MERV makes sense for your home. If you'd rather have a fresh filter on the way before you start, you can shop American-made 13x20x4 air filters and have one at your door in days.
TL;DR Quick Answers
13x20x4 Air Filters
A 13x20x4 air filter is a 4-inch-deep pleated HVAC filter measuring 13 inches by 20 inches across the face, built to drop into a dedicated filter cabinet on the return-air side of a residential heating and cooling system. After more than a decade of building these filters in the United States, we recommend an American-made pleated 13x20x4 in MERV 8, 11, or 13 for most homes, with replacement every three to six months for typical use or every 60 to 90 days for households with pets or allergies.
Key facts at a glance:
Nominal size: 13" x 20" x 4". Actual size: 12.5" x 19.5" x 3.75".
MERV options: MERV 8 (basic dust and pollen), 11 (pet dander and finer particles), 13 (smoke, bacteria, and virus-carrying droplets).
Lifespan: three to six months for most homes, 60 to 90 days with pets, allergies, or wildfire smoke.
Install direction: the airflow arrow on the frame points toward the blower, not toward the return-air opening.
Not interchangeable with 13x20x1 or 13x20x5 filters.
Top Takeaways
A 13x20x4 is a 4-inch-deep pleated filter that fits a return-air cabinet or grille. The extra depth gives you longer life and lower static pressure than a 1-inch filter.
Six steps to install: power off, locate the housing, remove the old filter, point the airflow arrow at the blower, slide the new one in flush, then power back on and log the date.
Most homes do best with MERV 8 to 13. Pets, allergies, smoke, or wildfire season push you toward MERV 11 or 13.
Replace every three months at minimum. Drop to every 60 to 90 days if you have pets, allergies, or heavy use.
MERV is the only nationally regulated rating. MPR and FPR are proprietary scales.
A gap-free fit matters as much as the MERV number. Bypassed air doesn't get filtered.

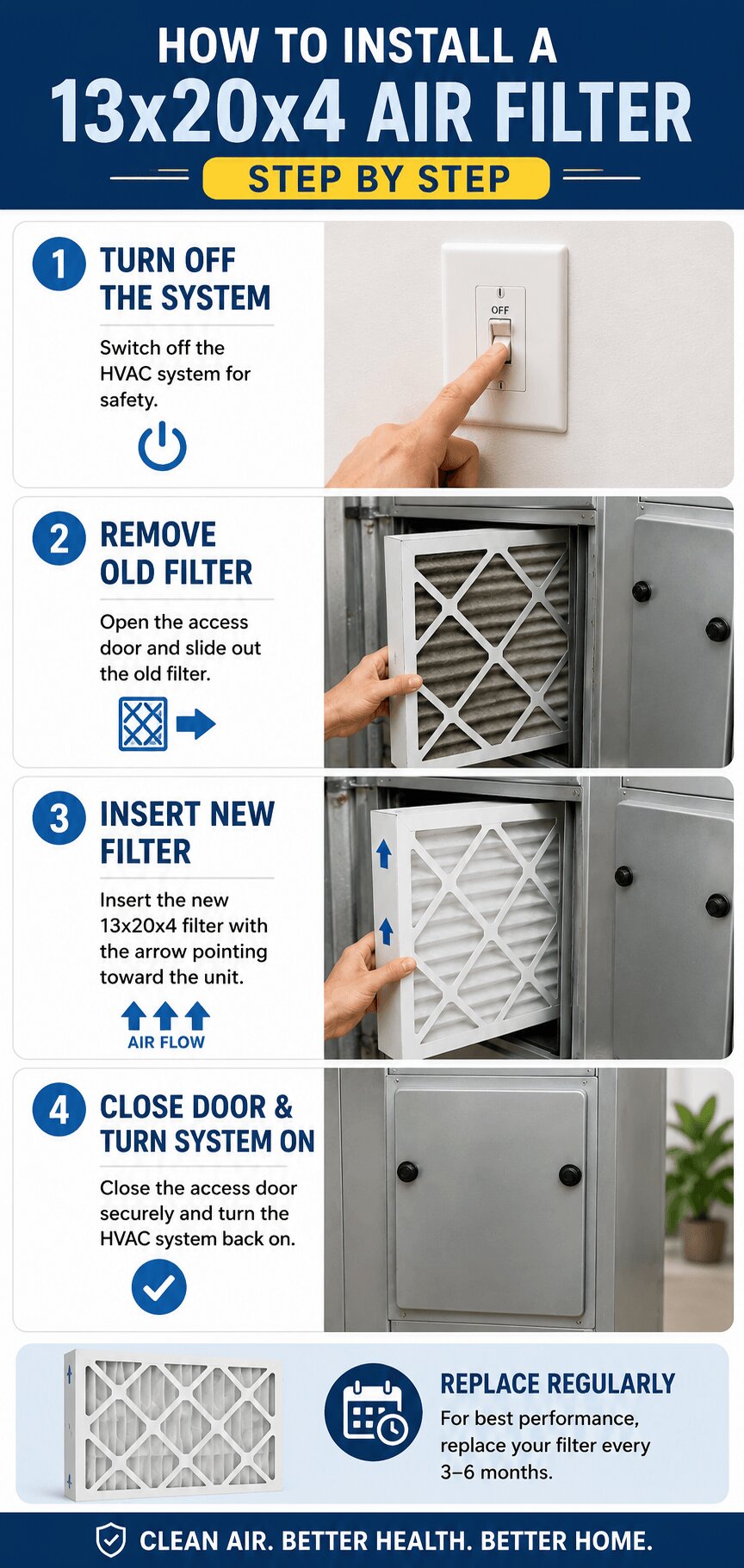

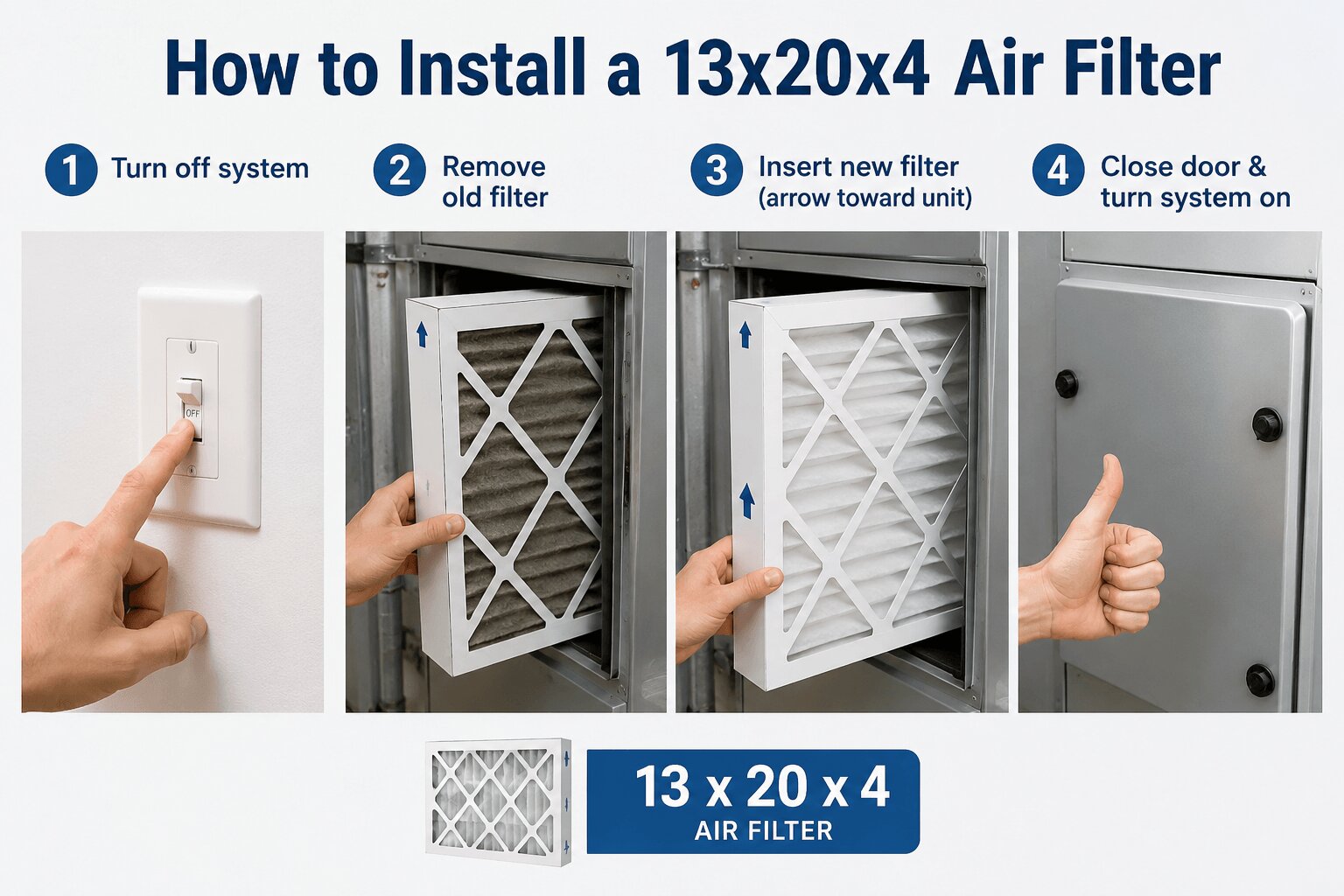

How to Install a 13x20x4 Air Filter in 6 Steps
A 13x20x4 is a 4-inch-deep pleated filter that fits a dedicated cabinet on the return-air side of your HVAC system. The extra depth gives you more surface area, longer life, and a lower static-pressure load on your blower than a standard 1-inch filter. Here's how to swap one cleanly.
Turn off your HVAC system. Flip the thermostat to "Off" so the blower can't pull dust into the system the moment the old filter comes out.
Locate the filter housing. On most setups, the 13x20x4 lives in a slim metal cabinet next to the air handler or behind a large return-air grille on the wall or ceiling.
Slide the old filter out. Pull it straight out. Inspect for gray buildup, a sagging cardboard frame, or moisture. Any of those means you should be changing it more often.
Check the airflow arrow. Every Filterbuy frame is printed with an arrow. Point it toward the blower, away from the return-air opening.
Slide the new filter in flush. It should sit snug with no visible gaps around the frame. Gaps let unfiltered air bypass the pleats and reach your coil.
Power back on and log the date. Restore the thermostat and write today's date on the cardboard edge with a marker. Future-you will thank you.
Pro Tip: If your filter slot has a hinged door, replace any worn foam gasket while it's open. A tight seal is the difference between filtering your air and decorating your duct.
"After more than a decade of building pleated filters in the U.S., the most common 13x20x4 install mistake we see is the airflow arrow pointing the wrong way. Get that arrow right and you get the full filter life you paid for."
Filterbuy Air Quality Team, drawing on first-hand customer install feedback and more than 85,000 verified reviews.
7 Essential Resources
EPA, What Is a MERV Rating? The federal explanation of how filters get rated for particle capture. https://www.epa.gov/indoor-air-quality-iaq/what-merv-rating
EPA, Guide to Air Cleaners in the Home. Plain-language guidance on choosing furnace and HVAC filters. https://www.epa.gov/indoor-air-quality-iaq/guide-air-cleaners-home
ENERGY STAR, Heat and Cool Efficiently. Filter-change cadence and HVAC efficiency basics from the federal program. https://www.energystar.gov/saveathome/heating-cooling
Wikipedia, Air Filter. Background on how mechanical air filters work and where they're used. https://en.wikipedia.org/wiki/Air_filter
Wikipedia, Minimum Efficiency Reporting Value. Technical detail on the MERV 1 to 16 scale and ASHRAE 52.2 testing. https://en.wikipedia.org/wiki/Minimum_efficiency_reporting_value
DOE FEMP, Purchasing Energy-Efficient Residential Central Air Conditioners. Why proper installation and airflow protect HVAC efficiency. https://www.energy.gov/cmei/femp/purchasing-energy-efficient-residential-central-air-conditioners
Building America Solution Center, High-MERV Filters. DOE-backed guidance on MERV 8, 11, and 13 for residential systems. https://basc.pnnl.gov/resource-guides/high-merv-filters
3 Statistics Worth Knowing
Americans spend about 90% of their time indoors, where pollutant levels can run two to five times higher than typical outdoor levels (U.S. EPA). https://www.epa.gov/indoor-air-quality-iaq/guide-air-cleaners-home
ENERGY STAR recommends checking your filter every month and replacing it at least every three months. A dirty filter slows airflow, makes the system work harder, and wastes energy. https://www.energystar.gov/saveathome/heating-cooling
Filters rated MERV 13 and above are required to demonstrate at least 50% removal efficiency for the smallest particles tested (U.S. EPA). https://www.epa.gov/indoor-air-quality-iaq/guide-air-cleaners-home
Final Thoughts and Opinion
A 13x20x4 air filter swap is a five-minute act of household leadership. Of every HVAC variable you actually control as a homeowner, the filter is the cheapest and most direct lever within reach. Thousands of Filterbuy customers tell us the same story after switching: their system runs quieter, rooms heat and cool more evenly, and visible household dust drops fast. That's where every clean-air conversation should start at home.
Our honest take: most homes do best with a MERV 11 or MERV 13 pleated 13x20x4 from a manufacturer you can name. Skip the marketing-only ratings like MPR and FPR. Choose by the only nationally regulated scale, MERV. Pair a 4-inch filter with a calendar reminder, and you capture most of the value a far more expensive whole-home air cleaner promises. That's how you make the invisible visible, and how filter day stops feeling like a chore and starts feeling like protection.
Frequently Asked Questions
Can I use a 13x20x5 air filter in a 13x20x4 housing?
No. The depth difference changes both fit and airflow, and a too-deep filter can warp the housing door. Always match the exact nominal size your system was designed for.
How often should I replace a 13x20x4 air filter?
Plan on every three to six months for MERV 8 through 13 in a typical home. Drop to 60 or 90 days if you have pets, allergies, smokers, or you're in wildfire territory.
What MERV rating is best for a 13x20x4 filter?
MERV 8 covers basic dust and pollen. MERV 11 adds pet dander and finer particles. MERV 13 captures smoke and bacteria-carrying droplets. Use the highest MERV your HVAC system is rated to handle.
Where can I find a 13x20x4 air filter near me?
Filterbuy ships American-made 13x20x4 filters nationwide with fast delivery, so "near me" is usually as close as your doorstep in two to four business days.
Are washable or electrostatic 13x20x4 filters worth it?
They can be, if you're committed to monthly rinsing and re-drying. For most households, a quality pleated MERV 11 or 13 outperforms washable options on fine particles with far less maintenance.
Ready to Install Your 13x20x4 Air Filter Today?
Now that you know exactly how to install a 13x20x4 air filter step by step, the last move is grabbing the right filter for the job. Order your American-made 13x20x4 air filter from Filterbuy, shipped fast and backed by more than 85,000 five-star reviews, so you can put this guide to work before the weekend.
